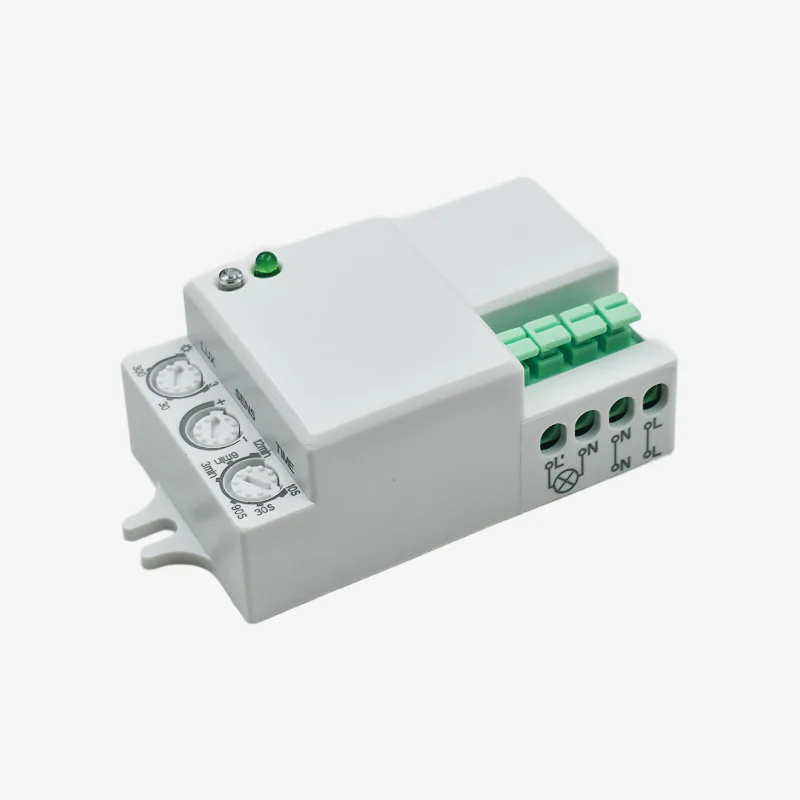

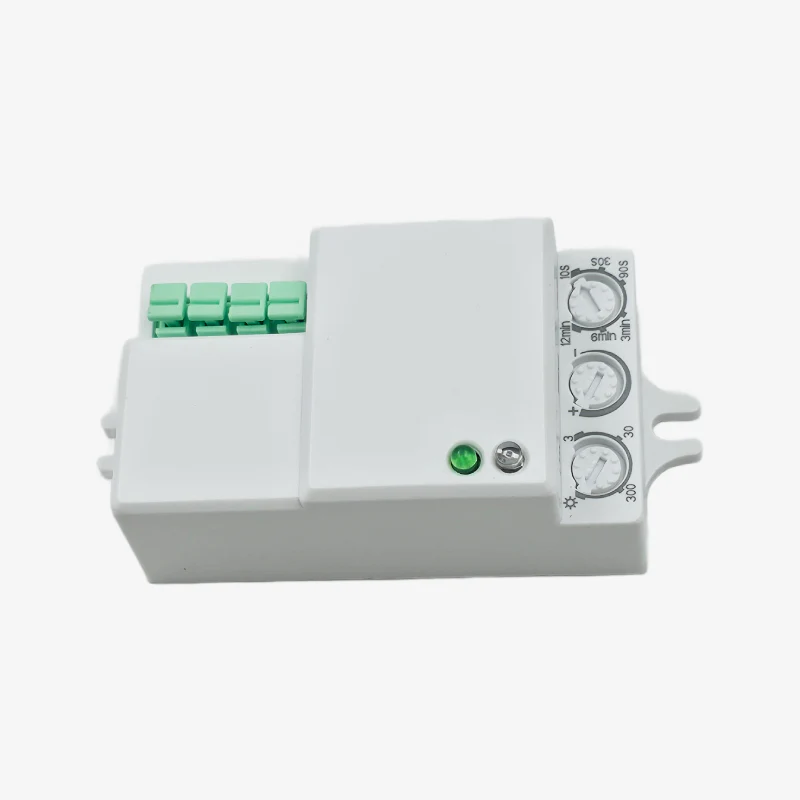

HAS1001 – Microwave Sensor

Features:

1. Microwave sensing technology (5.8GHz radar).
2. Works through glass / thin walls / doors.
3. Lux adjustable for day or night mode.
4. Time delay adjustable for auto switch OFF.
5. Suitable for lights and appliances.

Specifications:

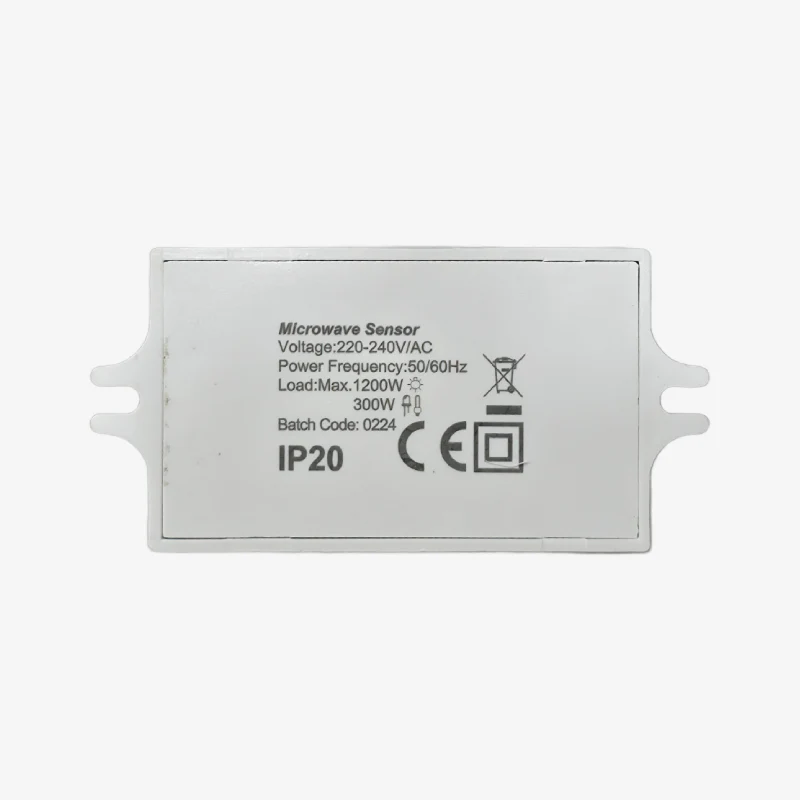

• Power Source: 220-240V AC
• Power Frequency: 50/60 Hz
• Ambient Light: <3-2000 LUX adjustable
• HF System: 5.8 GHz CW radar ISM band
• Time Delay: 10 seconds to 12 minutes adjustable
• Rated Load: 1200W (Incandescent) / 300W (Energy saving lamps)
• Detection Range: 360° / 180°
• Detection Distance: 5-15m wall adjustable / 1-8m ceiling radius adjustable
• Transmission Power: <0.2 mW
• Installing Height: wall 1.5-3.5 m / ceiling 2-8 m
• Power Consumption: approx. 0.9W
• Detection Motion Speed: 0.6 – 1.5 m/s

Package Includes:

1 × 5.8 GHz Human Presence Microwave Motion Sensor Module
